Calculating Inductance Of A Solenoid. Step by step process to calculate inductance of solenoid check the number of turns, radius, length of the solenoid. R = coil radius in inches.

☑ Inductance Per Meter Of A Coaxial Cable from anisiofase1.blogspot.com

The original work was triggered by some encounters with misleading and incorrect information; L is the inductance in henries, v l is the voltage across the coil and di/dt is the rate of change of current in amperes per second, a/s. Mutual inductance of a coaxial solenoid.

Source: alhaytlna.blogspot.com

And i said for typical devices you would buy, it's going to be very complicated, you just measure but. E = − l d i d t.

Source: www.slideserve.com

Convert input (s) to base unit step 2: A solenoid is a coil wound into a tightly packed helix.

Source: xtronic.org

Here, let's look at the ideal solenoid. Of eecs note if we wish to increase the inductance of this solenoid, we can either:

Source: www.slideserve.com

Let's calculate the mutual inductance of two coaxial long solenoids. And i said for typical devices you would buy, it's going to be very complicated, you just measure but.

Source: anisiofase1.blogspot.com

N = number of turns. The inductance of a coil of wire is given by.

Source: www.researchgate.net

This is college physics answers with shaun dychko. Mutual inductance of a coaxial solenoid.

Source: www.rfcafe.com

Let's calculate the mutual inductance of two coaxial long solenoids. In physics, the term refers specifically to a long, thin loop of wire, often wrapped around a metallic core, which produces a uniform.

Source: anisiofase1.blogspot.com

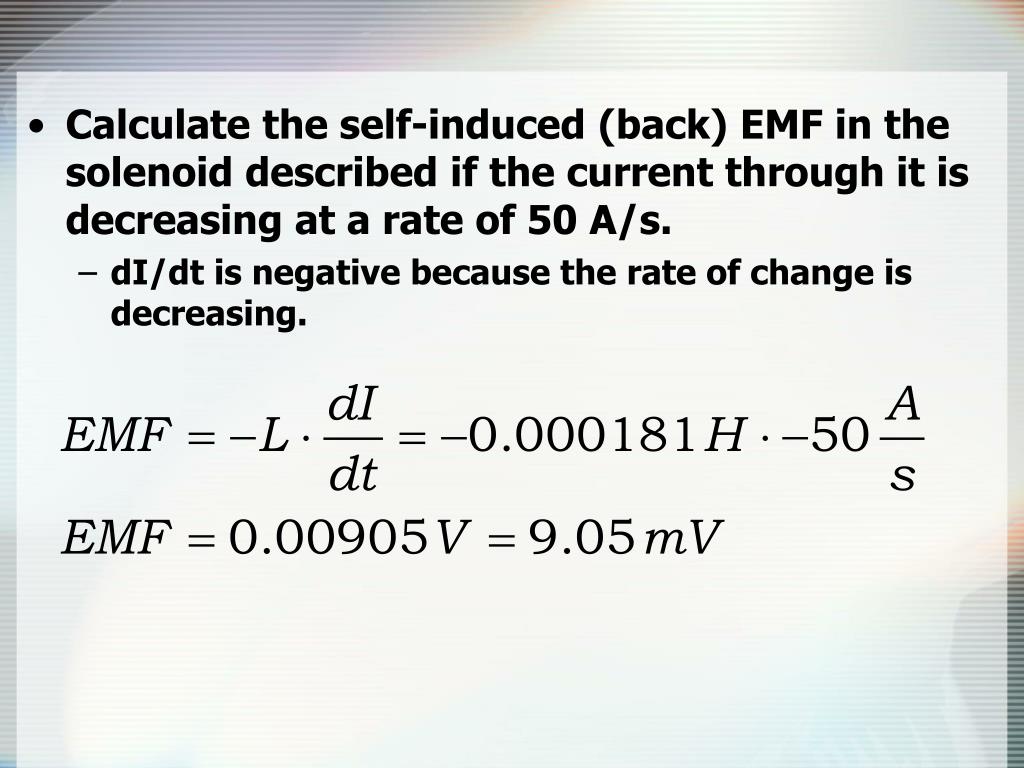

Rate of change of current, d i d t = − 50.0 a / s. But for the second case, iron core, we must also multiply by the effective mu of the magnetic path.

A Geometry For Which We Can Calculate The Inductance.

In physics, the term refers specifically to a long, thin loop of wire, often wrapped around a metallic core, which produces a uniform. Inductance, l is actually a measure. A solenoid is a coil wound into a tightly packed helix.

Check The Solenoid's Number Of Turns, Radius, And Length.

This is college physics answers with shaun dychko. A tightly wound cylindrical coil of wire is called a solenoid. The inductance, l = 1.81 × 10 − 4.

L = Coil Length In Inches.

R = coil radius in inches. Mutual inductance of a coaxial solenoid. Times the area whose area are we taking is it a1 or.

Of Eecs Note If We Wish To Increase The Inductance Of This Solenoid, We Can Either:

E = − l d i d t. Convert result to output's unit A solenoid is 50.0 centimeters long, which is 50.0 times 10 to the minus 2 meters and it has a diameter of 10.0 centimeters with 1000 loops.

Here According To The Question.

Self inductance of solenoid solution step 1: And i said for typical devices you would buy, it's going to be very complicated, you just measure but. Solenoidal inductors are often used in high voltage, pulsed power, and power conditioning.
